Dayton Lamina

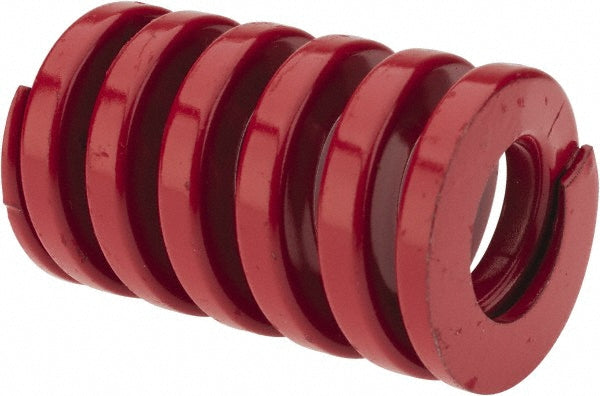

Die Spring - Dayton Lamina 9-2008-26
MFR# 9-2008-26
$7.88List $9.88
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-2008-26 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorRed
Duty ratingHeavy-Duty
Free length in2
Hole diameter in1-1/4
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection0.6000
Maximum deflection load lb928.00
Maximum operating deflection percent30.00
Rod diameter in5/8
StandardsISO 10243 International Standard
Travel to solid load0.6300
Wire shapeD-Shaped
