Dayton Lamina
Die Spring - Dayton Lamina 9-2012-26
MFR# 9-2012-26
$8.95List $11.23
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

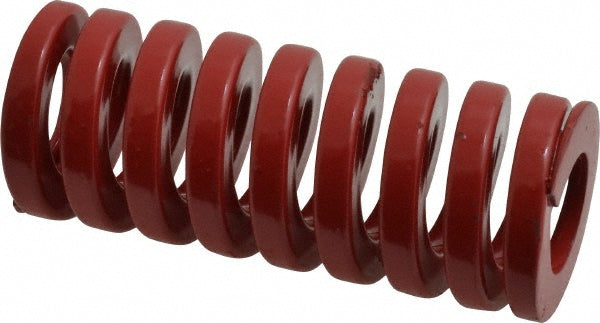

The Dayton Lamina 9-2012-26 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorRed
Duty ratingHeavy-Duty
Free length in3
Hole diameter in1-1/4
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection0.9000
Maximum deflection load lb850.00
Maximum operating deflection percent30.00
Rod diameter in5/8
StandardsISO 10243 International Standard
Travel to solid load0.9700
Wire shapeD-Shaped
