Dayton Lamina
Die Spring - Dayton Lamina 9-2016-21
MFR# 9-2016-21
$10.50List $13.18
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

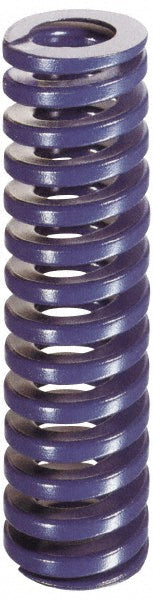

The Dayton Lamina 9-2016-21 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorBlue
Duty ratingMedium-Duty
Free length in4
Hole diameter in1-1/4
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection1.5100
Maximum deflection load lb446.00
Maximum operating deflection percent37.50
Rod diameter in5/8
StandardsISO 10243 International Standard
Travel to solid load1.6300
Wire shapeD-Shaped
