Dayton Lamina

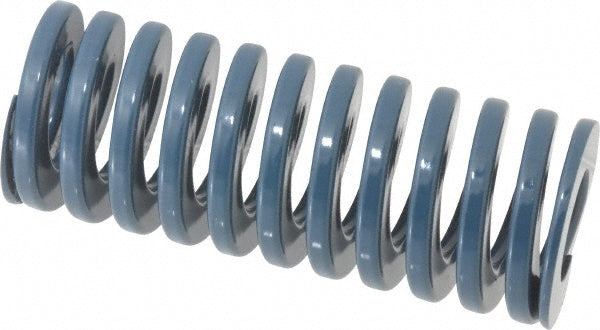

Die Spring - Dayton Lamina 9-3220-21
MFR# 9-3220-21
$30.51List $38.30
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-3220-21 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorBlue
Duty ratingMedium-Duty
Free length in5
Hole diameter in2
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection1.8800
Maximum deflection load lb1013.00
Maximum operating deflection percent37.50
Rod diameter in1
StandardsISO 10243 International Standard
Travel to solid load2.0500
Wire shapeD-Shaped
