Dayton Lamina
Die Spring - Dayton Lamina 9-3228-26
MFR# 9-3228-26
$36.85List $46.25
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

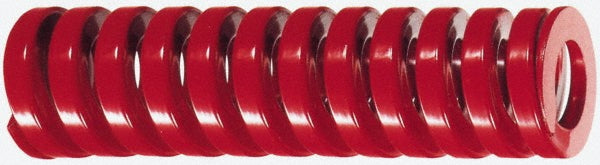

The Dayton Lamina 9-3228-26 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorRed
Duty ratingHeavy-Duty
Free length in7
Hole diameter in2
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection2.1
Maximum deflection load lb1577
Maximum operating deflection percent30.00
Rod diameter in1
StandardsISO 10243 International Standard
Travel to solid load2.4500
Wire shapeD-Shaped
