Dayton Lamina

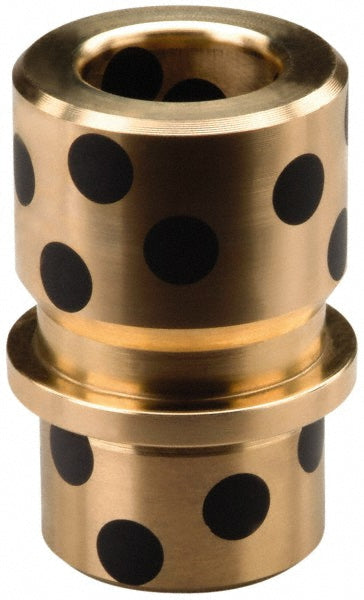

Cast Aluminum Bronze Die Bushing - Dayton Lamina GD250
MFR# GD250
$414.80List $520.68
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina GD250 is a cast aluminum bronze die bushing.
Specifications
Attachment methodDemountable
Bin3.66
Body typeShoulder
Bottom outside diameter in3-13/16
Bushing typeFriction
Clamp compatibility6-91-1
Collar outside diameter in3-21/32
D in2.50 (+.0010,+.0014)
H field5/16-18 x 7/8
Inside diameter in2-1/2
L11-7/8
Length above collar in1-7/8
Length under collar frac in2-1/2
Lubrication typeSelf-Lubricating
MaterialCast Aluminum Bronze
Top outside diameter3.2500
Top outside diameter frac in3-1/4
