De-Sta-Co

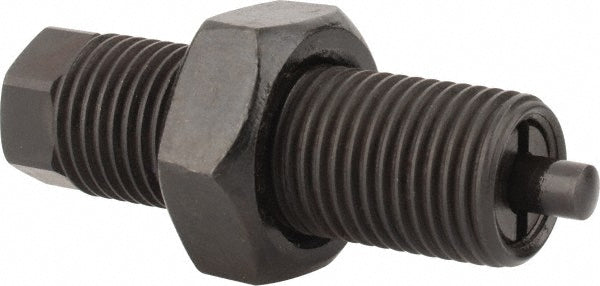

Clamping Accessory - De-Sta-Co 010-210-400
MFR# 010-210-400
$227.90
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 010-210-400 is a clamping accessory.
Specifications
Action typeSingle-Acting
Body thread length1.4100
Body thread size1/2-20
Effective clamping area0.11in
Effective piston area sq in0.11
End port sizeSAE #2
Hex size in0.044in
Maximum operating pressure psig5000.00
Maximum output force279 @ 3000 psig lb
Maximum output force lb279 @ 3000 psig
Minimum operating pressure psi200bar
Operating stroke length in0.2188in; 7/32
Operating volume cu in0.02
Operation typeHydraulic
Overall length in1.66in
Projection diameter0.1500
Projection length0.1900
Rod materialStainless Steel
Side port size1/16 NPT
Total stroke0.22
