De-Sta-Co

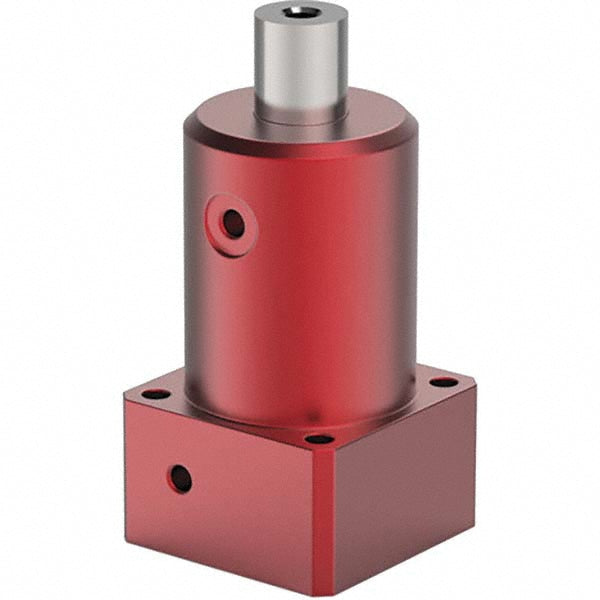

Swing Clamp - De-Sta-Co 035-240-290
MFR# 035-240-290
$467.24List $496.39
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 035-240-290 is a swing clamp.
Specifications
Action typeDouble
Arm length0.9400
Body diameter1.5700
Body length2.9500
Body width diameter1.5700
Clamping force lb70.14
Clamping force n312.00
Maximum operating pressure bar7.00
Maximum operating pressure psi100
Maximum operating pressure psig100
Mount typeFlange
Operating volume cc29.26
Operating volume cu in1.7800
Operation typeAir
Port size1/8 NPT
Rod diameter0.6300
Swing directionLeft Hand
Total stroke distance1.0900
Vertical stroke distance0.5700
