De-Sta-Co

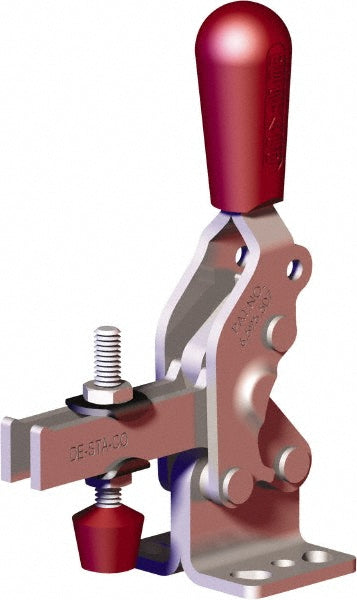

Toggle Clamp - De-Sta-Co 2002-U207
MFR# 2002-U207
$19.59List $24.60
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2002-U207 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar thickness0.1200
Bar width in1/2
Base length (mm)34.04
Base styleFlanged
Base width in1.7600
Front of base to tip of toggle bar1.9500
Front of base to toggle tip1.95in
F 1 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees72
Handle orientationVertical
Handle styleStraight
Handle width0.9400
Height under bar0.9500
Holding capacity lb606.98
Holding capacity n2700.00
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in0.9
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.2800
Number of mounting holes6
Overall height4.7200
Overall length4.2700
Width distance between mount holes1.2500
