De-Sta-Co

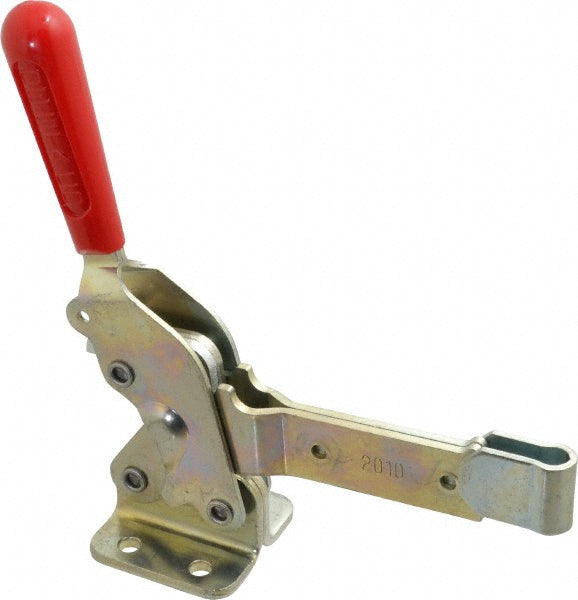

Toggle Clamp - De-Sta-Co 2010-S
MFR# 2010-S
$52.57List $54.99
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2010-S is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees78
Bar styleSolid
Bar thickness0.3268
Bar width1.1300
Base length (mm)64.26
Base styleFlanged
Base width in2.6200
Finish coatingZinc
Front of base to tip of toggle bar3.5500
Front of base to toggle tip3.55in
F 3 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees66
Handle orientationVertical
Handle styleStraight
Height under bar1.7000
Holding capacity lb1400.00
Holding capacity n6230.00
IncludesBolt Retainer
Length distance between mount holes in1.25
MaterialCarbon Steel
Maximum mechanical advantage06:01
Mounting hole diameter0.3400
Number of mounting holes4
Overall height9.0800
Overall length7.5100
Spindle length (mm)90.00
Spindle thread sizeM10x1.5
Width distance between mount holes1.7800
