De-Sta-Co

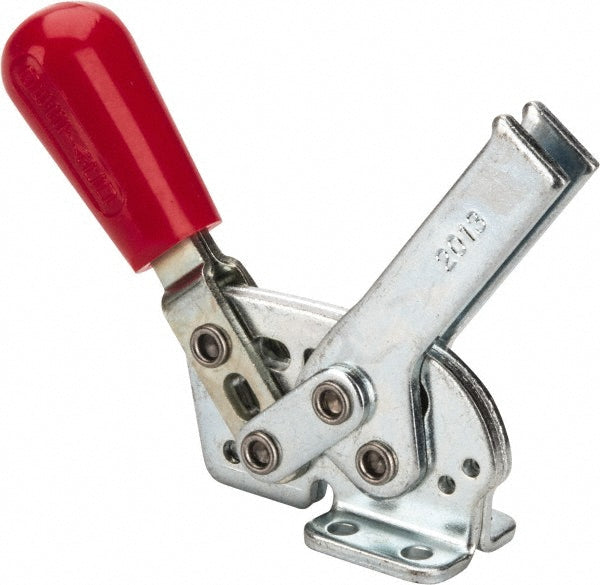

Toggle Clamp - De-Sta-Co 2013-U
MFR# 2013-U
$22.43List $28.16
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2013-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees71
Bar styleU-Bar
Bar thickness0.1000
Bar width0.2100
Base length in1
Base styleFlanged
Base width in1.0600
Finish coatingZinc
Front of base to tip of toggle bar1.6500
Front of base to toggle tip1.65in
F 6 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees58
Handle orientationHorizontal
Handle styleStraight
Height under bar0.7500
Holding capacity lb295.00
Holding capacity n1310.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.53
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.1700
Number of mounting holes4
Overall height2.0200
Overall length5.8700
Spindle length (mm)34.00
Spindle thread sizeM5x0.8
Spindle travel in0.8300
Width distance between mount holes0.7000
