De-Sta-Co

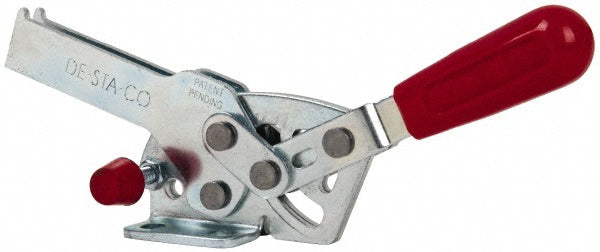

Toggle Clamp - De-Sta-Co 2017-U
MFR# 2017-U
$26.05List $32.70
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2017-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees73
Bar styleU-Bar
Bar thickness0.1200
Bar width0.2400
Base length (mm)42.67
Base styleFlanged
Base width in1.8600
Finish coatingZinc
Front of base to tip of toggle bar2.5300
Front of base to toggle tip2.53in
F 5 21
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees69
Handle orientationHorizontal
Handle styleStraight
Height under bar0.9800
Holding capacity lb560.00
Holding capacity n2500.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.03
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.1400
Number of mounting holes4
Overall height1.9500
Overall length8.6500
Spindle length (mm)54.00
Spindle thread sizeM6x1.0
Spindle travel in1.4800
Width distance between mount holes1.2100
