De-Sta-Co
Toggle Clamp - De-Sta-Co 202
MFR# 202
$12.97List $16.28
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

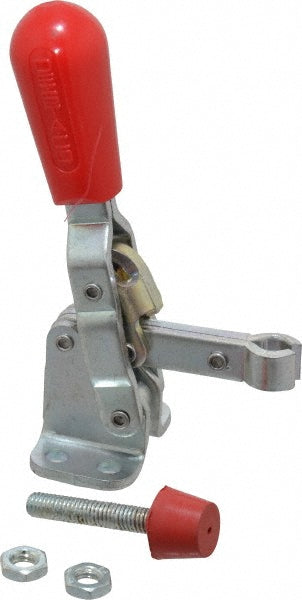

The De-Sta-Co 202 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees105
Bar styleU-Bar
Bar width0.9200
Base length in1
Base styleFlanged
Base width in1.5600
Finish coatingZinc
Front of base to tip of toggle bar1.7300
Front of base to toggle tip1.73in
F 0 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees65
Handle orientationVertical
Handle styleStraight
Height under bar0.9200
Holding capacity lb200.00
Holding capacity n890.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.49
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.2200
Number of mounting holes4
Overall height4.3300
Overall length3.4600
Spindle length (mm)44.00
Spindle thread sizeM6x1.0
Spindle travel in0.9800
Width distance between mount holes1.0600
