De-Sta-Co

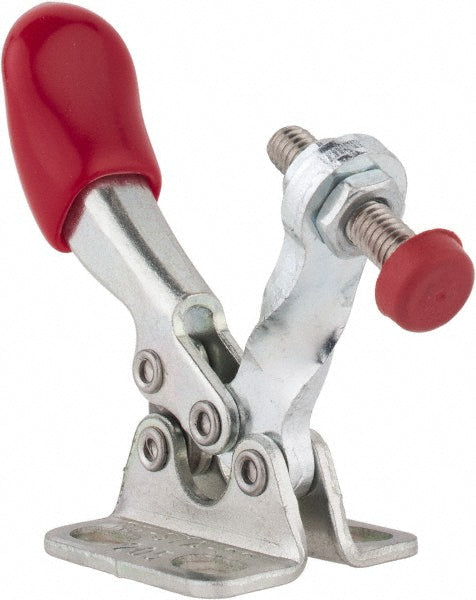

Toggle Clamp - De-Sta-Co 205-S
MFR# 205-S
$9.51List $11.94
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 205-S is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees94
Bar styleSolid
Bar width in1/4
Base length (mm)61.21
Base styleFlanged
Base width in0.9500
Finish coatingZinc
Front of base to tip of toggle bar0.7300
Front of base to toggle tip0.73in
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees82
Handle orientationHorizontal
Handle styleStraight
Height under bar0.3000
Holding capacity lb60.00
Holding capacity n265.00
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in0.62
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.1600
Number of mounting holes4
Overall height0.6700
Overall length2.8500
Spindle length (mm)22.00
Spindle thread sizeM4x0.7
Width distance between mount holes0.6200
