De-Sta-Co

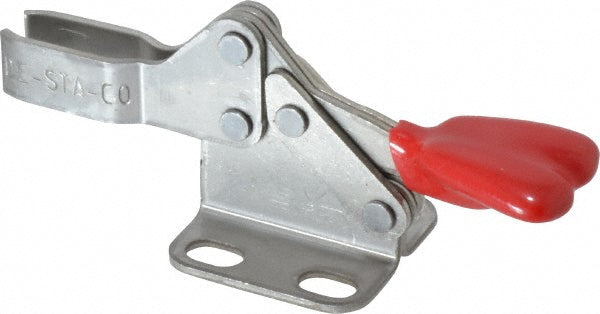

Toggle Clamp - De-Sta-Co 206-SS
MFR# 206-SS
$37.53List $37.95
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 206-SS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width0.3100
Base length (mm)23.88
Base styleFlanged
Base width in0.9400
Finish coatingZinc
Front of base to tip of toggle bar0.9500
Front of base to toggle tip0.95in
F 5 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees90
Handle orientationHorizontal
Handle styleStraight
Handle width0.6200
Height under bar0.4400
Holding capacity lb100.00
Holding capacity n440.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.63
MaterialStainless Steel
Maximum mechanical advantage03:01
Number of mounting holes4
Overall height1.0600
Overall length2.7400
Spindle length0.8600
Spindle thread size8-32
Spindle travel in0.3500
Width distance between mount holes0.6300
