De-Sta-Co

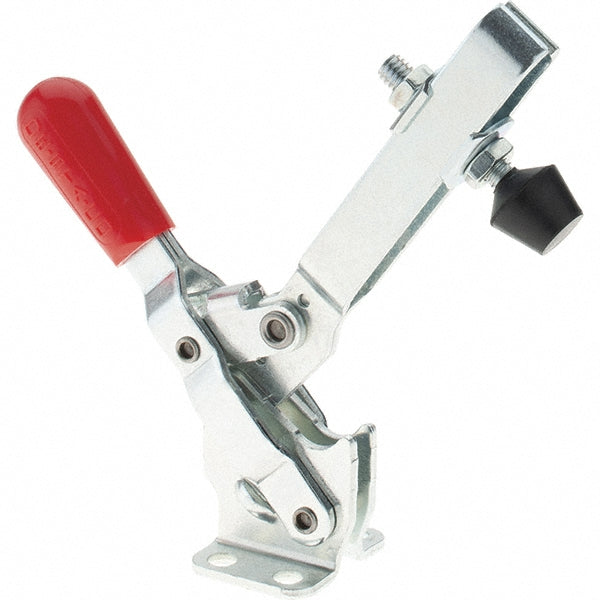

Toggle Clamp - De-Sta-Co 207-44
MFR# 207-44
$28.34List $35.57
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-44 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees99
Bar styleU-Bar
Bar width0.6300
Base length (mm)35.05
Base styleFlanged
Base width in1.7300
Finish coatingZinc
Front of base to tip of toggle bar3.4800
Front of base to toggle tip3.48in
F 7 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.2500
Holding capacity lb375.00
Holding capacity n1670.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height6.9300
Overall length5.4100
Spindle length2-1/4
Spindle thread size5/16-18
Spindle travel in2.9400
Width distance between mount holes1.2500
