De-Sta-Co

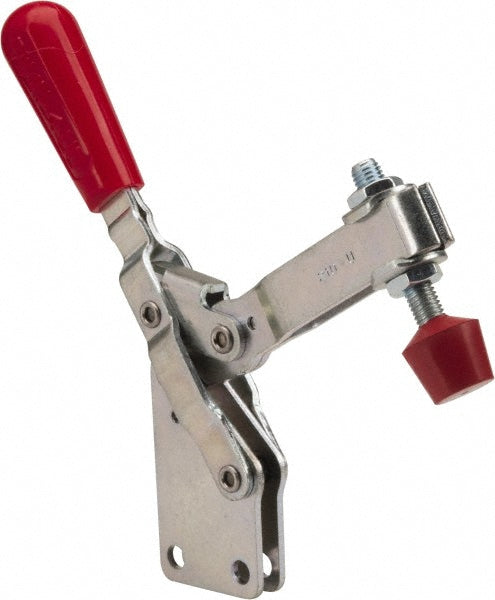

Toggle Clamp - De-Sta-Co 210-UB
MFR# 210-UB
$36.11List $45.34
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 210-UB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees103
Bar styleU-Bar
Bar width0.7900
Base length (mm)48.01
Base styleStraight
Finish coatingZinc
Front of base to tip of toggle bar3.6500
Front of base to toggle tip3.65in
F 4 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees58
Handle orientationVertical
Handle styleStraight
Height under bar2.2000
Holding capacity lb600.00
Holding capacity n2670.00
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in1.26
MaterialCarbon Steel
Maximum mechanical advantage07:01
Mounting hole diameter0.3300
Number of mounting holes4
Overall height9.1100
Overall length6.7000
Spindle length3-1/4
Spindle thread size3/8-16
Spindle travel in2.3500
Width distance between mount holes0.3100
