De-Sta-Co

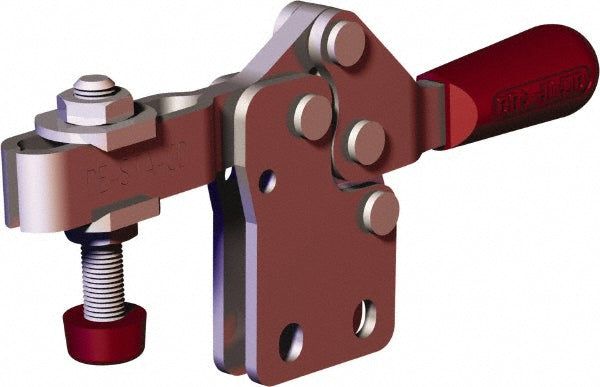

Toggle Clamp - De-Sta-Co 213-UB
MFR# 213-UB
$28.19
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 213-UB is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleU-Bar
Bar width0.3700
Base length in1
Base styleStraight
Front of base to tip of toggle bar1.4200
Front of base to toggle tip1.42in
F 7 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees60
Handle orientationHorizontal
Handle styleStraight
Height under bar0.9200
Holding capacity lb150.62
Holding capacity n670.00
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in0.53
MaterialCarbon Steel
Maximum mechanical advantage03:01
Mounting hole diameter0.1600
Number of mounting holes4
Overall height1.7200
Overall length4.0500
Spindle travel in0.8500
Width distance between mount holes0.1600
