De-Sta-Co

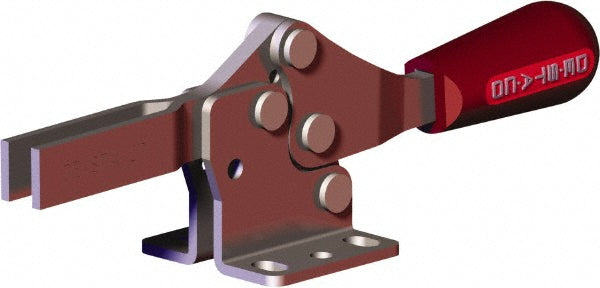

Toggle Clamp - De-Sta-Co 217-U-L
MFR# 217-U-L
$30.01
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 217-U-L is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees91
Bar styleU-Bar
Bar width0.4900
Base length (mm)37.08
Base styleFlanged
Base width in1.5500
Front of base to tip of toggle bar2.0900
Front of base to toggle tip2.09in
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees61
Handle orientationHorizontal
Handle styleStraight
Height under bar0.9200
Holding capacity lb202.33
Holding capacity n900.00
Length distance between mount holes in0.5200; 1.0300
MaterialCarbon Steel
Mounting hole diameter0.1900
Number of mounting holes6
Overall length6.5827
Spindle includedYes
Width distance between mount holes1.1200
