De-Sta-Co

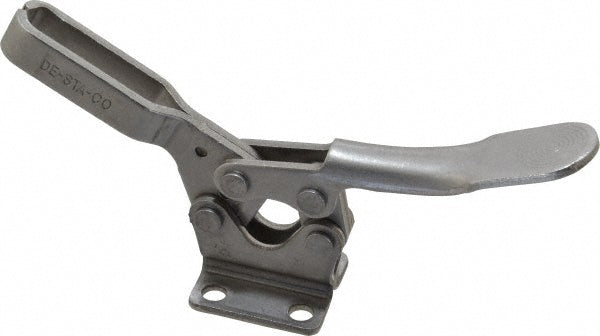

Toggle Clamp - De-Sta-Co 225-USS
MFR# 225-USS
$47.31List $47.85
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 225-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees92
Bar styleU-Bar
Bar width in1/2
Base length in1-1/2
Base styleFlanged
Base width in1.3700
Finish coatingZinc
Front of base to tip of toggle bar2.6900
Front of base to toggle tip2.69in
F 2 101
Handle colorRed
Handle materialStainless Steel
Handle movement degrees70
Handle orientationHorizontal
Handle styleStraight
Height under bar1.3100
Holding capacity lb600.00
Holding capacity n2670.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.0
MaterialStainless Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.2600
Number of mounting holes4
Overall height1.8400
Overall length6.9100
Spindle length2.5000
Spindle thread size5/16-18
Spindle travel in1.3800
Width distance between mount holes0.8700
