De-Sta-Co

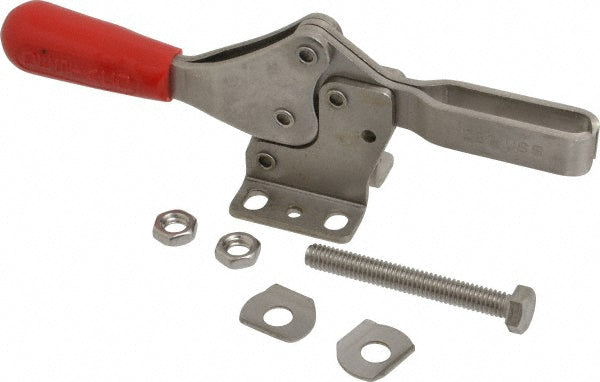

Toggle Clamp - De-Sta-Co 227-USS
MFR# 227-USS
$56.59List $57.23
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 227-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees91
Bar styleU-Bar
Bar width0.5600
Base length (mm)39.88
Base styleFlanged
Base width in1.7400
Finish coatingZinc
Front of base to tip of toggle bar2.6500
Front of base to toggle tip2.65in
F 8 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees56
Handle orientationHorizontal
Handle styleStraight
Height under bar1.2700
Holding capacity lb600.00
Holding capacity n2225.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.02
MaterialStainless Steel
Maximum mechanical advantage03:01
Mounting hole diameter0.2600
Number of mounting holes6
Overall height2.4000
Overall length7.4800
Spindle length2.5000
Spindle thread size5/16-18
Spindle travel in1.5400
Width distance between mount holes1.2400
