De-Sta-Co

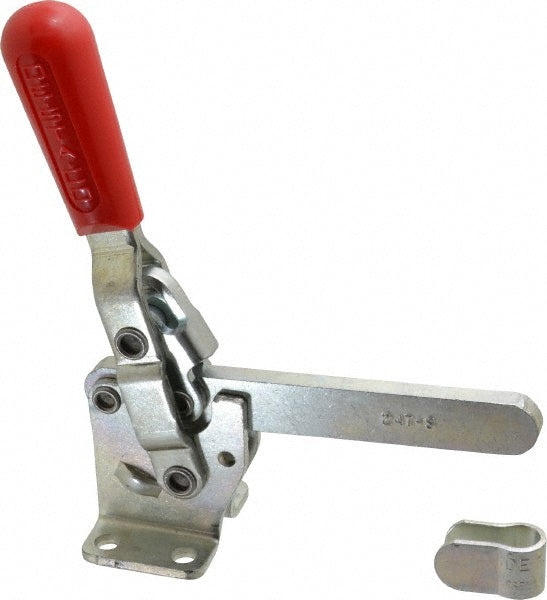

Toggle Clamp - De-Sta-Co 247-S
MFR# 247-S
$47.57List $59.71
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 247-S is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees120
Bar styleSolid
Bar thickness0.3800
Bar width0.8700
Base length (mm)50.80
Base styleFlanged
Base width in2.5200
Finish coatingZinc
Front of base to tip of toggle bar4.8800
Front of base to toggle tip4.88in
F 0 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees67
Handle orientationVertical
Handle styleStraight
Height under bar1.9800
Holding capacity lb1000.00
Holding capacity n4450.00
IncludesBolt Retainer
Length distance between mount holes in1.26
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.3500
Number of mounting holes4
Overall height8.8600
Overall length6.8800
Spindle thread sizeM12x1.75
Width distance between mount holes1.7700
