De-Sta-Co

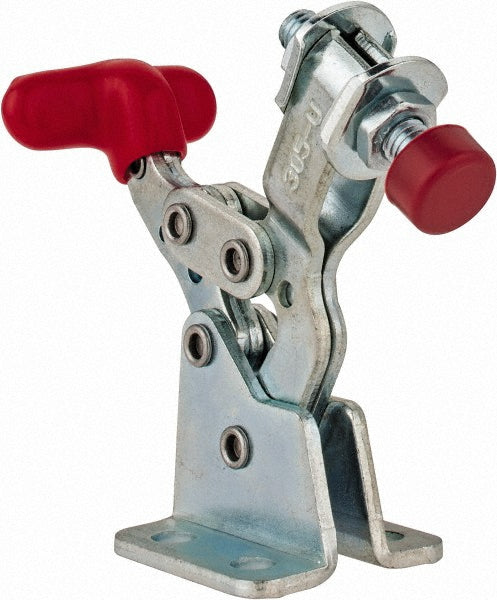

Toggle Clamp - De-Sta-Co 305-U
MFR# 305-U
$12.69List $15.93
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 305-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width0.3100
Base length (mm)25.91
Base styleFlanged
Base width in1.0000
Finish coatingZinc
Front of base to tip of toggle bar1.1900
Front of base to toggle tip1.19in
F 3 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees170
Handle orientationHorizontal
Handle styleT-Handle
Handle width1.0600
Height under bar0.4800
Holding capacity lb150.00
Holding capacity n665.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.53
MaterialCarbon Steel
Maximum mechanical advantage02:01
Mounting hole diameter0.1800
Number of mounting holes4
Overall height1.4300
Overall length2.2100
Spindle length (mm)29.00
Spindle thread sizeM5x0.8
Spindle travel in0.5000
Width distance between mount holes0.6300
