De-Sta-Co

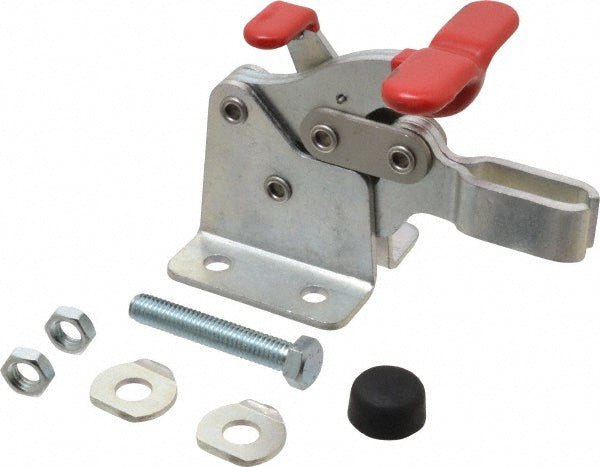

Toggle Clamp - De-Sta-Co 309-UR
MFR# 309-UR
$105.94
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 309-UR is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width in3/4
Base length (mm)64.01
Base styleFlanged
Base width in2.4700
Finish coatingZinc
Front of base to tip of toggle bar2.6800
Front of base to toggle tip2.68in
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees168
Handle orientationHorizontal
Handle styleT-Handle
Handle width3.5900
Height under bar1.3100
Holding capacity lb750.00
Holding capacity n3335.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.38
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.3300
Number of mounting holes4
Overall height3.5300
Overall length5.1900
Spindle length2.2500
Spindle thread size3/8-16
Spindle travel in1.0600
Width distance between mount holes1.5000
