De-Sta-Co

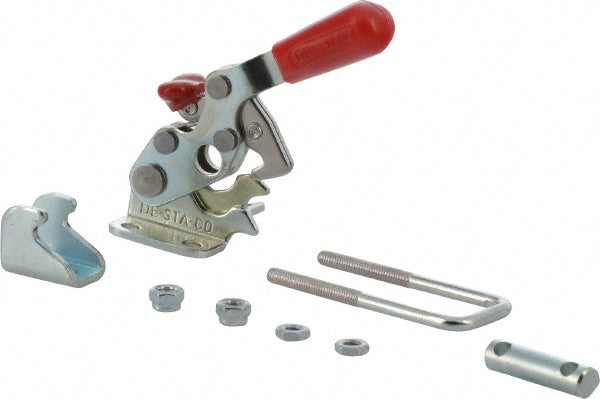

Toggle Clamp - De-Sta-Co 323-R
MFR# 323-R
$30.83List $34.19
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 323-R is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar width0.7500
Base length1.02
Base length (mm)25.91
Base styleFlanged
Base to center of bar0.4700
Base width in1.1000
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement1.1700
Handle colorRed
Handle styleStraight
IncludesLatch Plate; Threaded U-Hook; Thumb Control Lever
Length distance between mount holes0.6300
Load capacity1600N; 360lb
Load capacity n1600.00
MaterialCarbon Steel
Mounting hole diameter0.1700
Mounting hole diameter (mm)4.32
Overall height1.1900
Overall length in4-1/4
Width distance between mounting holes0.7500
Width distance between mount holes in3/4
