De-Sta-Co

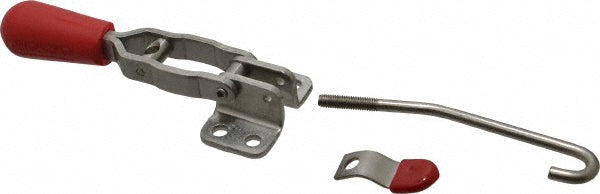

Toggle Clamp - De-Sta-Co 330-SS
MFR# 330-SS
$39.22List $39.67
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 330-SS is a stainless steel toggle clamp.
Specifications
Bar styleJ-Hook
Bar thickness0.1900
Bar width0.3100
Base length1.00
Base length (mm)25.40
Base styleFlanged
Base to center of bar0.5600
Base width in1.6900
Body materialStainless Steel
Clamping orientationHorizontal
Drawing movement2.3500
Handle colorRed
Handle styleStraight
IncludesPatented Thumb Control Lever; Threaded J-Hook
Industry number330-SS
Length distance between mount holes in1/2
Load capacity889.64N; 200lb
Load capacity n889.64
MaterialStainless Steel
Mounting hole diameter0.2200
Mounting hole diameter (mm)5.59
Overall height1.4300
Overall length6.0100
Width distance between mounting holes1.2200
Width distance between mount holes (mm)30.99
