De-Sta-Co

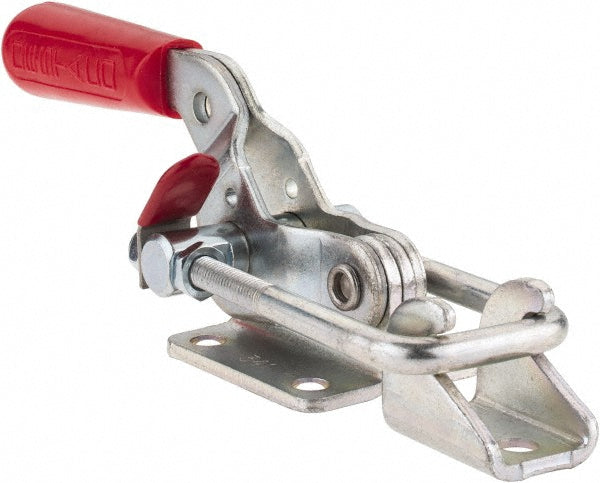

Toggle Clamp - De-Sta-Co 341
MFR# 341
$30.09List $37.78
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 341 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.3100
Bar width1.7500
Base length2.38
Base length (mm)60.45
Base styleFlanged
Base to center of bar0.9400
Base width in2.1200
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement2.5000
Handle colorRed
Handle styleStraight
IncludesLatch Plate; Patented Thumb Control Lever; Threaded U-Hook
Industry number341
Length distance between mount holes1.6300
Load capacity8896.44N; 2000lb
Load capacity n8896.44
MaterialCarbon Steel
Mounting hole diameter0.3300
Mounting hole diameter (mm)8.38
Overall height2.8900
Overall length8.2000
Width distance between mounting holes1.5000
Width distance between mount holes in1-1/2
