De-Sta-Co

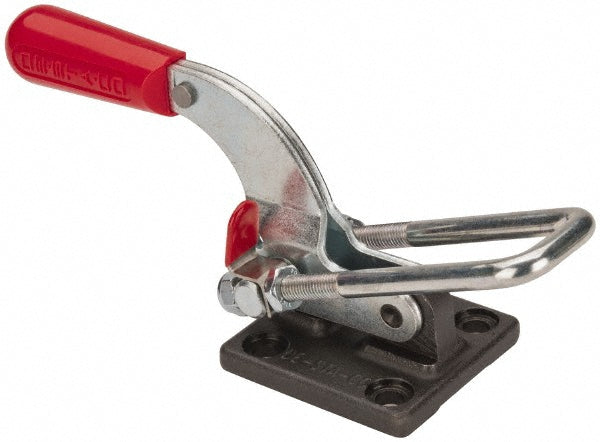

Toggle Clamp - De-Sta-Co 375
MFR# 375
$74.49List $93.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 375 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.3900
Bar width1.7500
Base length3.44
Base length (mm)87.38
Base styleFlanged
Base to center of bar1.1300
Base width in3.1300
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement3.5000
Handle colorRed
Handle styleStraight
IncludesPatented Thumb Control Lever; Threaded U-Hook
Industry number375
Length distance between mount holes in2-1/4
Load capacity17792.9N; 4000lb
Load capacity n17792.90
MaterialCarbon Steel
Mounting hole diameter0.4100
Mounting hole diameter (mm)10.41
Overall height4.1900
Overall length10.1900
Width distance between mounting holes2.2500
Width distance between mount holes in2-1/4
