De-Sta-Co

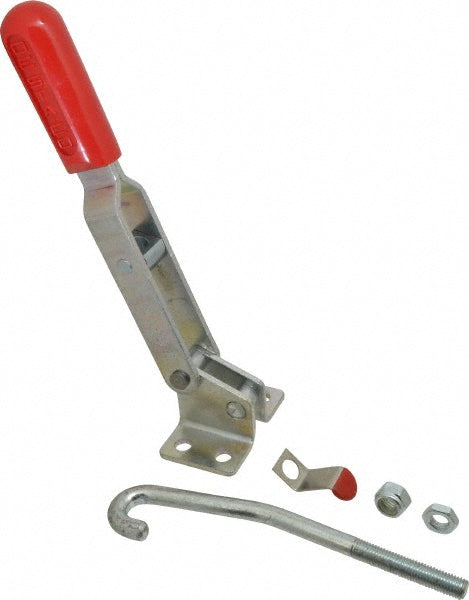

Toggle Clamp - De-Sta-Co 381
MFR# 381
$45.84List $57.55
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 381 is a carbon steel toggle clamp.
Specifications
Bar styleJ-Hook
Bar thickness0.4700
Bar width0.6300
Base length2.13
Base length (mm)54.10
Base styleFlanged
Base to center of bar1.8100
Base width in3.3800
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement6.1300
Handle colorRed
Handle styleStraight
IncludesPatented Thumb Control Lever; Threaded J-Hook
Industry number381
Length distance between mount holes1.1300
Load capacity4448.22N; 1000lb
Load capacity n4448.22
MaterialCarbon Steel
Mounting hole diameter0.4100
Mounting hole diameter (mm)10.41
Overall height2.9000
Overall length13.4500
Width distance between mounting holes2.3700
Width distance between mount holes (mm)60.20
