De-Sta-Co

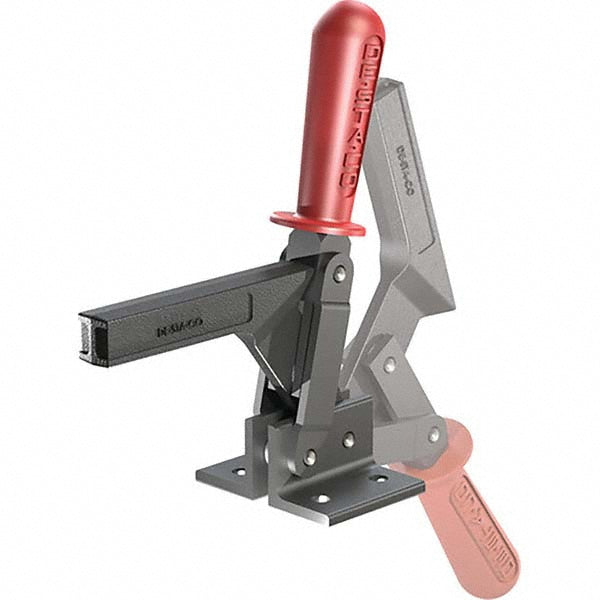

Toggle Clamp - De-Sta-Co 5110
MFR# 5110
$69.48List $69.64
Save 0%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5110 is a forged alloy steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees74
Bar styleSolid
Bar thickness0.7500
Bar width0.8700
Base length in2-1/2
Base styleFlanged
Base width in0.9800
Finish coatingOxide
Front of base to tip of toggle bar3.8300
Front of base to toggle tip3.83in
Handle colorRed
Handle materialForged Alloy Steel
Handle movement degrees138
Handle orientationVertical
Handle styleStraight
Height under bar2.1400
Holding capacity lb1146.53
Holding capacity n5100.00
MaterialForged Alloy Steel
Mounting hole diameter0.3543
Number of mounting holes4
Overall height6.5400
