De-Sta-Co
Toggle Clamp - De-Sta-Co 5131-R
MFR# 5131-R
$121.15
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

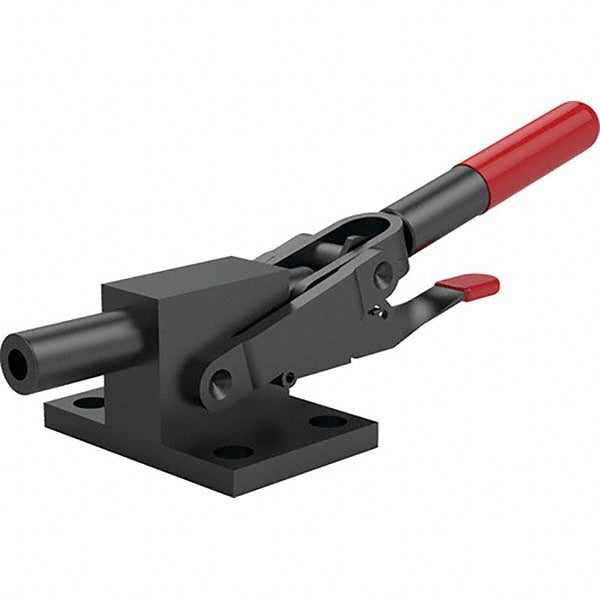

The De-Sta-Co 5131-R is a carbon steel toggle clamp.
Specifications
Base length1.7300
Base styleFlanged
Base width in2.5200
Clamp materialCarbon Steel
Handle colorRed
Handle styleStraight
Length distance between mount holes in1.1300
Load capacity11120N; 2499.88lb
Load capacity n11120.00
MaterialCarbon Steel
Mounting hole diameter (mm)8.64
Number of mounting holes4
Overall height3.1500
Overall length7.3700
Plunger centerline height1.1000
Plunger diameter0.5100
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.0000
Width distance between mount holes1.8700
