De-Sta-Co

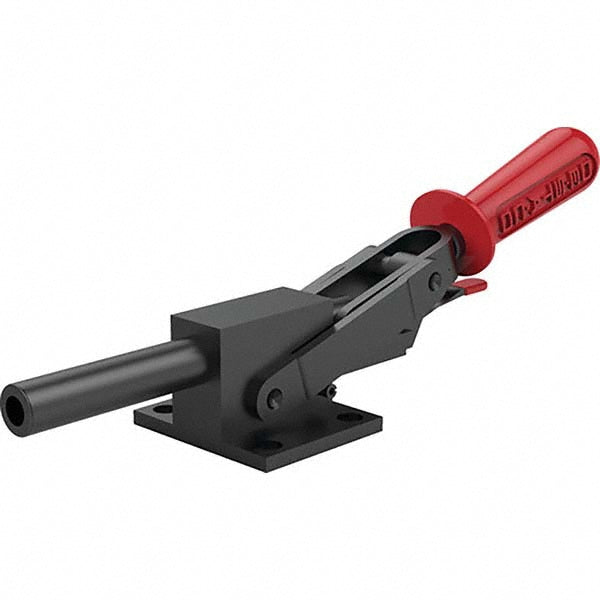

Toggle Clamp - De-Sta-Co 5133-R
MFR# 5133-R
$170.32
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5133-R is a carbon steel toggle clamp.
Specifications
Base length2.5200
Base styleFlanged
Base width in2.5200
Clamp materialCarbon Steel
Handle colorRed
Handle styleStraight
Length distance between mount holes in1.7500
Load capacity20460N; 4599.59lb
Load capacity n20460.00
MaterialCarbon Steel
Mounting hole diameter (mm)10.41
Number of mounting holes4
Overall height4.2200
Overall length12.8900
Plunger centerline height1.3800
Plunger diameter in3/4
Plunger shapeRound
Plunger thread size1/2-13
Plunger thread styleInternal
Plunger travel3.1300
Width distance between mount holes2.3100
