De-Sta-Co
Toggle Clamp - De-Sta-Co 5305-R
MFR# 5305-R
$114.59
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

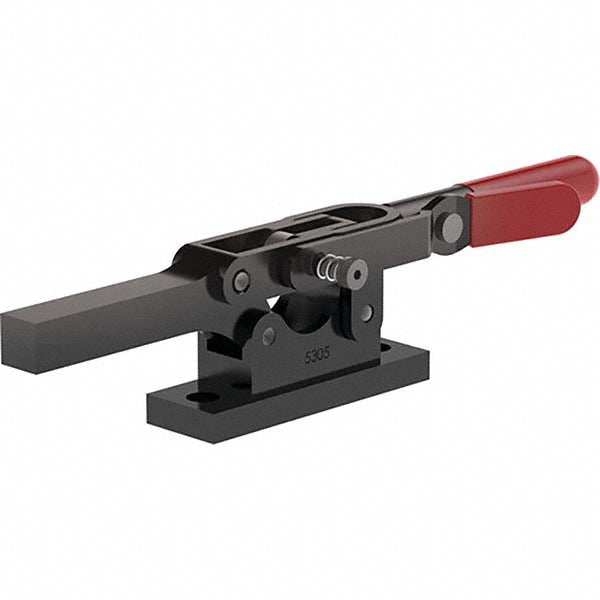

The De-Sta-Co 5305-R is a forged alloy steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleSolid
Bar thickness0.5100
Bar width0.5100
Base length (mm)80.01
Base styleFlanged
Base width in0.9800
Finish coatingOxide
Front of base to tip of toggle bar2.1200
Front of base to toggle tip2.12in
Handle colorRed
Handle materialForged Alloy Steel
Handle movement degrees69
Handle orientationHorizontal
Handle styleStraight
Height under bar1.1200
Holding capacity lb600.24
Holding capacity n2670.00
IncludesToggle Lock Plus
Length distance between mount holes in2.5
MaterialForged Alloy Steel
Mounting hole diameter0.3500
Number of mounting holes4
Overall height1.5100
Overall length8.3600
