De-Sta-Co

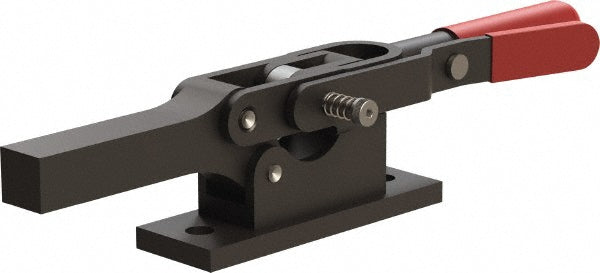

Toggle Clamp - De-Sta-Co 5310-R
MFR# 5310-R
$159.62
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5310-R is a forged alloy steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleSolid
Bar thickness0.7900
Bar width in3/4
Base length (mm)117.60
Base styleFlanged
Base width in1.5000
Finish coatingOxide
Front of base to tip of toggle bar2.6300
Front of base to toggle tip2.63in
Handle colorRed
Handle materialForged Alloy Steel
Handle movement degrees69
Handle orientationHorizontal
Handle styleStraight
Height under bar1.3100
Holding capacity lb1299.40
Holding capacity n5780.00
IncludesToggle Lock Plus
Length distance between mount holes in3.63
MaterialForged Alloy Steel
Mounting hole diameter0.4100
Number of mounting holes2
Overall height2.0000
Overall length11.0200
