De-Sta-Co

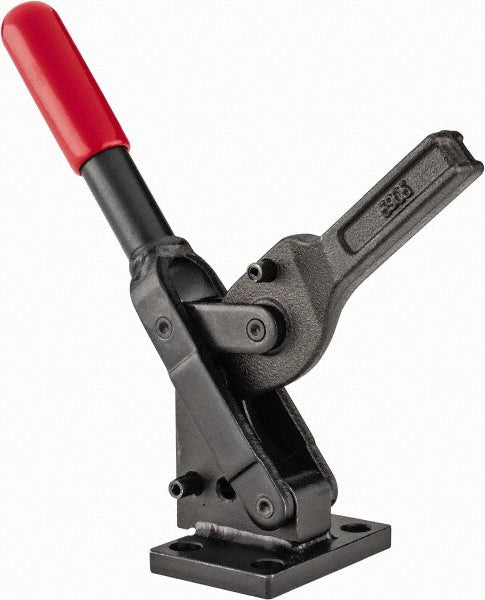

Toggle Clamp - De-Sta-Co 5905
MFR# 5905
$68.59List $68.74
Save 0%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5905 is a forged alloy steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees135
Bar styleSolid
Bar width0.5100
Base length in1-1/2
Base styleFlanged
Base width in2.1300
Finish coatingOxide
Front of base to tip of toggle bar2.4900
Front of base to toggle tip2.49in
Handle colorRed
Handle materialForged Alloy Steel
Handle movement degrees70
Handle orientationVertical
Handle styleStraight
Height under bar1.2700
Holding capacity lb750.86
Holding capacity n3340.00
Length distance between mount holes in1.0
MaterialForged Alloy Steel
Mounting hole diameter0.2900
Number of mounting holes4
Overall height6.5100
Overall length4.0200
Width distance between mount holes1.5000
