De-Sta-Co

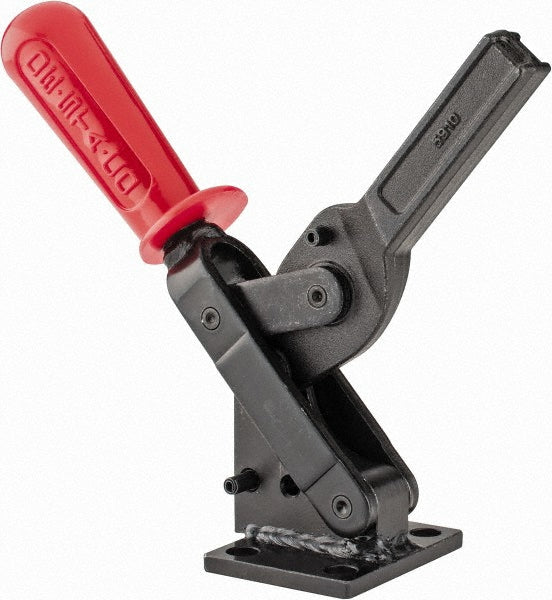

Toggle Clamp - De-Sta-Co 5910
MFR# 5910
$86.75List $86.94
Save 0%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5910 is a forged alloy steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees132
Bar styleSolid
Bar width in3/4
Base length in1-1/2
Base styleFlanged
Base width in2.7600
Finish coatingOxide
Front of base to tip of toggle bar3.7600
Front of base to toggle tip3.76in
Handle colorRed
Handle materialForged Alloy Steel
Handle movement degrees71
Handle orientationVertical
Handle styleStraight
Height under bar1.7500
Holding capacity lb1600.64
Holding capacity n7120.00
Length distance between mount holes in1.5
MaterialForged Alloy Steel
Mounting hole diameter0.4100
Number of mounting holes4
Overall height9.0400
Overall length6.0200
Width distance between mount holes2.0000
