De-Sta-Co

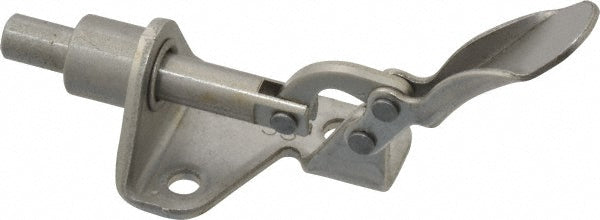

Toggle Clamp - De-Sta-Co 601-SS
MFR# 601-SS
$35.48List $37.69
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 601-SS is a stainless steel toggle clamp.
Specifications
Base length1.3300
Base styleFlanged
Base width in1.0500
Clamp materialStainless Steel
Front of base to tip of toggle bar1.2800
F 5 21 (Pulling)
Handle styleThumb
Includes(2) Nuts; Spindle
Industry number601-SS
Length distance between mount holes in0.6300
Load capacity444.82N; 100lb
Load capacity n444.82
MaterialStainless Steel
Maximum mechanical advantage14:1 (Pushing)
Mounting hole diameter (mm)4.32
Number of mounting holes3
Overall height1.2700
Overall length2.6100
Plunger centerline height0.5000
Plunger diameter in1/4
Plunger shapeRound
Plunger thread size8-32
Plunger thread styleInternal
Plunger travel0.6300
Width distance between mount holes0.6300
