De-Sta-Co

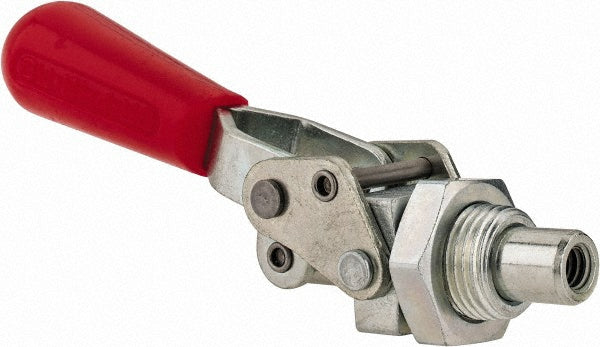

Toggle Clamp - De-Sta-Co 602
MFR# 602
$19.70List $24.73
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 602 is a carbon steel toggle clamp.
Specifications
Base styleMounting Plate
Clamp materialCarbon Steel
Front of base to tip of toggle bar0.8100
F 1 31 (Pushing)
Handle colorRed
Handle styleStraight
IncludesJam Nut
Industry number602
Jam nut height0.2500
Jam nut hex size0.4400
Jam nut thread size5/8-18
Load capacity889.64N; 200lb
Load capacity n889.64
MaterialCarbon Steel
Maximum mechanical advantage28:1 (Pulling)
Overall height3.1300
Overall length2.6200
Plunger diameter0.3900
Plunger shapeRound
Plunger thread size1/4-20
Plunger thread styleInternal
Plunger travel0.7500
