De-Sta-Co

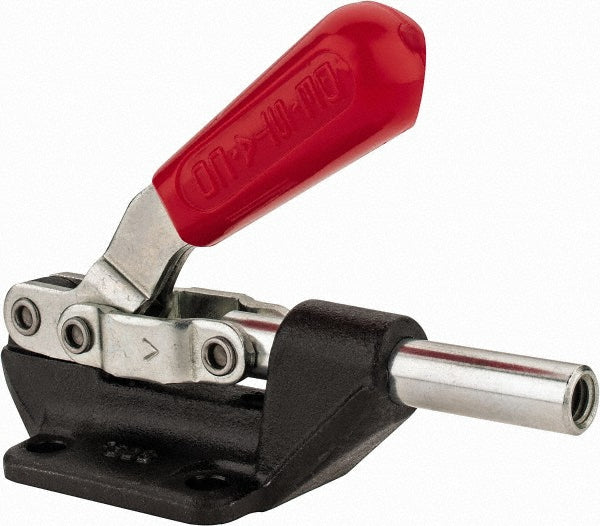

Toggle Clamp - De-Sta-Co 603
MFR# 603
$26.23List $32.92
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 603 is a carbon steel toggle clamp.
Specifications
Base length2.0000
Base styleFlanged
Base width in1.8800
Clamp materialCarbon Steel
Front of base to tip of toggle bar2.1600
F 4 31 (Pulling)
Handle colorRed
Handle styleStraight
Industry number603
Length distance between mount holes in1.4400
Load capacity2668.93N; 600lb
Load capacity n2668.93
MaterialCarbon Steel
Maximum mechanical advantage23:1 (Pushing)
Mounting hole diameter (mm)6.86
Number of mounting holes4
Overall height3.4300
Overall length4.7300
Plunger centerline height0.9700
Plunger diameter0.4400
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.2500
Width distance between mount holes1.3100
