De-Sta-Co

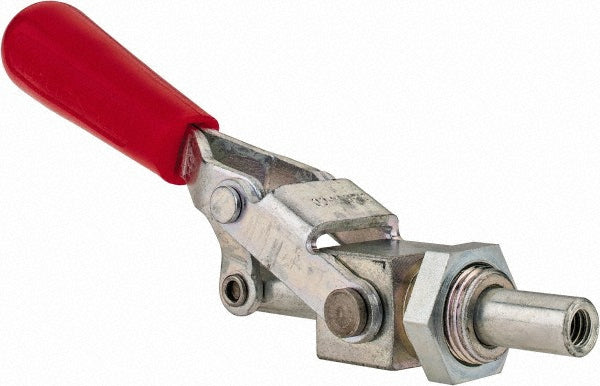

Toggle Clamp - De-Sta-Co 604
MFR# 604
$21.78List $27.34
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 604 is a carbon steel toggle clamp.
Specifications
Base length2.8000
Base styleMounting Plate
Base width in1.6000
Clamp materialCarbon Steel
Front of base to tip of toggle bar1.5600
F 5 41 (Pushing)
Handle colorRed
Handle styleStraight
IncludesJam Nut
Industry number604
Jam nut height0.2500
Jam nut hex size1.0000
Jam nut thread size3/4-16
Load capacity1334.47N; 300lb
Load capacity n1334.47
MaterialCarbon Steel
Maximum mechanical advantage26:1 (Pulling)
Overall height4.1600
Overall length4.9500
Plunger diameter0.4400
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.5000
