De-Sta-Co

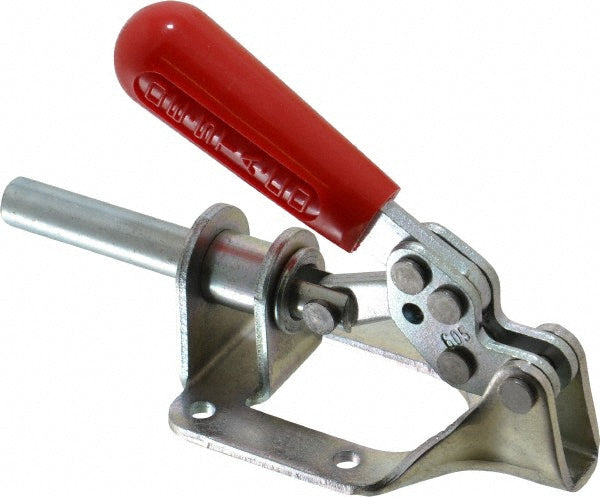

Toggle Clamp - De-Sta-Co 605
MFR# 605
$19.36List $24.30
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 605 is a carbon steel toggle clamp.
Specifications
Base length3.4100
Base styleFlanged
Base width in2.1900
Clamp materialCarbon Steel
Front of base to tip of toggle bar1.9400
F 5 41 (Pushing)
Handle colorRed
Handle styleStraight
Industry number605
Length distance between mount holes in1.3800
Load capacity1334.47N; 300lb
Load capacity n1334.47
MaterialCarbon Steel
Maximum mechanical advantage40:1 (Pulling)
Mounting hole diameter (mm)5.59
Number of mounting holes4
Overall height3.2900
Overall length5.4700
Plunger centerline height0.9700
Plunger diameter0.4400
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.2500
Width distance between mount holes1.6300
