De-Sta-Co

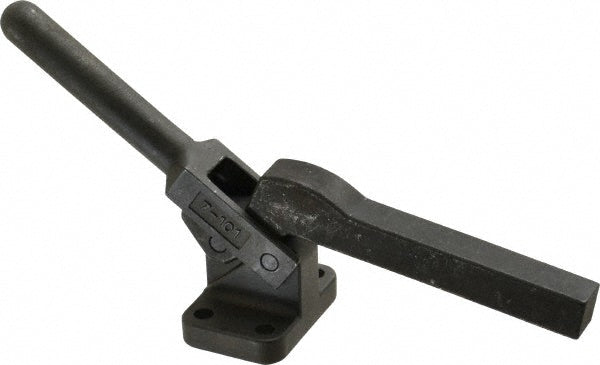

Toggle Clamp - De-Sta-Co 7-101
MFR# 7-101
$145.79
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 7-101 is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees80
Bar styleSolid
Bar thickness0.5000
Bar width in1/2
Base length in1-1/4
Base styleFlanged
Base width in1.7500
Finish coatingZinc
Front of base to tip of toggle bar3.1200
Front of base to toggle tip3.12in
Handle materialCarbon Steel
Handle movement degrees80
Handle orientationVertical
Handle styleStraight
Height under bar1.4400
Holding capacity lb475.00
Holding capacity n2110.00
Length distance between mount holes in0.75
MaterialCarbon Steel
Mounting hole diameter0.2200
Number of mounting holes4
Overall height5.0000
Overall length4.6300
Width distance between mount holes1.2500
