De-Sta-Co

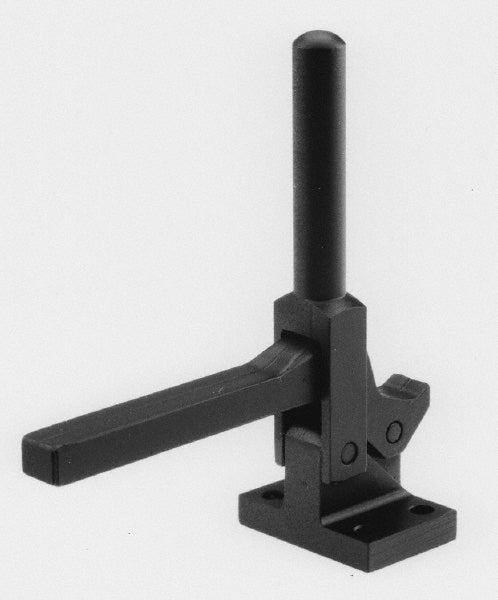

Toggle Clamp - De-Sta-Co 7-60
MFR# 7-60
$375.97
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 7-60 is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees80
Bar styleSolid
Bar thickness0.7520
Bar width0.8800
Base length (mm)61.98
Base styleFlanged
Base width in2.8800
Finish coatingZinc
Front of base to tip of toggle bar4.3800
Front of base to toggle tip4.38in
Handle materialCarbon Steel
Handle movement degrees80
Handle orientationVertical
Handle styleStraight
Height under bar2.5000
Holding capacity lb1600.00
Holding capacity n7120.00
Length distance between mount holes in1.62
MaterialCarbon Steel
Mounting hole diameter0.4100
Number of mounting holes4
Overall height9.5000
Overall length7.4000
Width distance between mount holes2.1200
