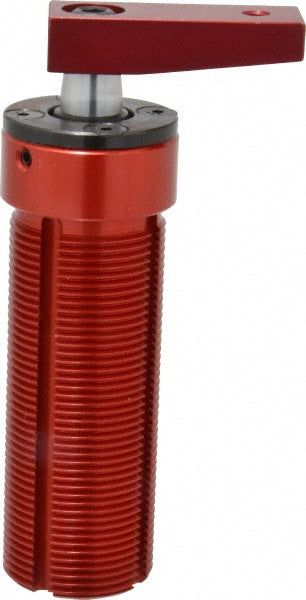

Swing Clamp - De-Sta-Co 8016

De-Sta-Co

Swing Clamp - De-Sta-Co 8016

MFR# 8016

$398.42List $423.26 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The De-Sta-Co 8016 is a swing clamp.

Specifications

Action typeSingle
Bin2.87
Body diameter1.2520
Body length2.8701
Body thread size1-1/8-16
Body width diameter1.2520
Clamping force lb24.73
Clamping force n110.00
Clamp arm compatibility801528 Standard Clamping Arm; 801529 Standard Clamping Arm; 801530 T-Style Clamping Arm; 801531 T-Style Clamping Arm; 801532 Blank Clamping Arm
C in0.6200
E in1.2500
FeaturesThreaded Body Mounted in a Tapped Hole
IncludesClamping Arm; Spindle
K in1.4400
Maximum operating pressure psi130
Minimum operating pressure bar3.00
Mount typeThreaded Body
Operating volume cc4.10 (Clamp)
Operation typeAir
Overall open length4.7500
Port size10-32
Rod diameter0.4400
Swing directionLeft Hand
Tapped depth0.3100
Total stroke distance0.8500
Vertical stroke distance0.3819
