De-Sta-Co

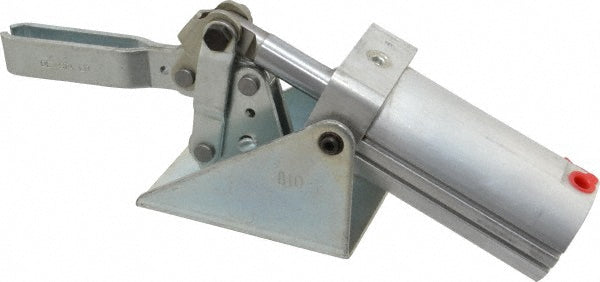

Toggle Clamp - De-Sta-Co 810-U
MFR# 810-U
$282.52List $313.31
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 810-U is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension3.5700
Bar opening degrees99
Bar styleSolid
Cylinder bore size1.5700
F 1 61
Height under bar1.7900
Holding capacity inner lb600.00
Holding capacity inner n2670.00
K in2.5800
Length distance between mount holes in1-1/4
Maximum air pressure bar10.00
Maximum mechanical advantage2.9:1
Mounting hole size0.3400
Mounting orientationHorizontal
Outer clamping force n1290.00
Outer load capacity n1823.00
Overall closed height3.7900
Overall closed length11.7000
Overall open height7.8700
Overall open length8.1300
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.7800
