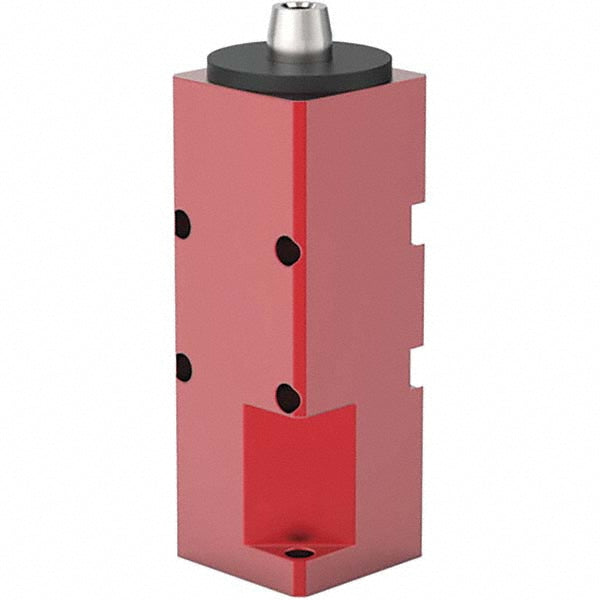

Swing Clamp - De-Sta-Co 8115-LA

De-Sta-Co

Swing Clamp - De-Sta-Co 8115-LA

MFR# 8115-LA

$353.72List $404.43 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The De-Sta-Co 8115-LA is a swing clamp.

Specifications

Action typeSingle
Base radius in#10
Bin3.50
Body diameter0.7500
Body length3.3700
Body width diameter0.7500
Clamping force lb24.73
Clamping force n110.00
Clamp arm compatibility801528 Standard Clamping Arm; 801529 Standard Clamping Arm; 801530 T-Style Clamping Arm; 801531 T-Style Clamping Arm; 801532 Blank Clamping Arm
C in1.2500
D in1.2500
E in0.6200
FeaturesBlock Style Body; Lightweight & Robust
F in0.4700
G in0.4700
H field1.0000
IncludesClamping Arm; Spindle
J in1.1200
K in1.0000
Maximum operating pressure bar8.96
Maximum operating pressure psi130
Maximum operating pressure psig130
Minimum operating pressure bar2.07
Minimum operating pressure psig30
Mount typeSurface
M in1.0000
N in1.5000
Operating volume cc4.10 (Clamp)
Operation typeAir
Overall length in1/4
Overall open length4.7500
Port size10-32
P in0.4700
Q in0.20
Rod diameter0.4400
Stem diameter1.4400
Swing directionRight Hand
Tapped depth0.3100
Total stroke distance0.8500
Vertical stroke distance0.3819
