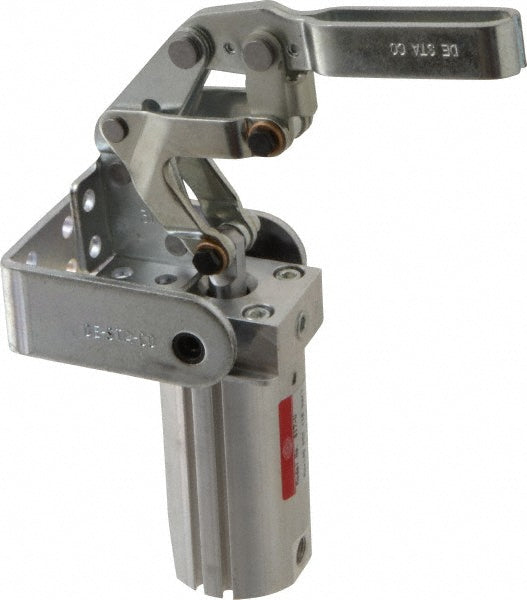

Toggle Clamp - De-Sta-Co 817-U

De-Sta-Co

Toggle Clamp - De-Sta-Co 817-U

MFR# 817-U

$207.35List $216.90 Save 4%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The De-Sta-Co 817-U is a toggle clamp.

Specifications

Bar end typeOpen
Bar extension2.3700
Bar opening degrees95
Bar styleU-Bar
Bin6.13
Cylinder bore size1.2600
D in0.6300
F 1 41
F in0.6300
G in2.4400
Height under bar2.6900
Holding capacity inner lb375.00
Holding capacity inner n1670.00
H field2.4400
IncludesFlanged Washer
J in0.2500
K in2.0300
Length distance between mount holes0.6300
Manufacturer s part number817-U
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage2.5:1
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.2700
Mounting orientationVertical
Outer clamping force lb200.00
Outer clamping force n890.00
Outer load capacity lb225.00
Outer load capacity n1005.00
Overall closed height2.4400
Overall closed length6.2400
Overall open height7.5100
Overall open length3.8700
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.0000
