De-Sta-Co

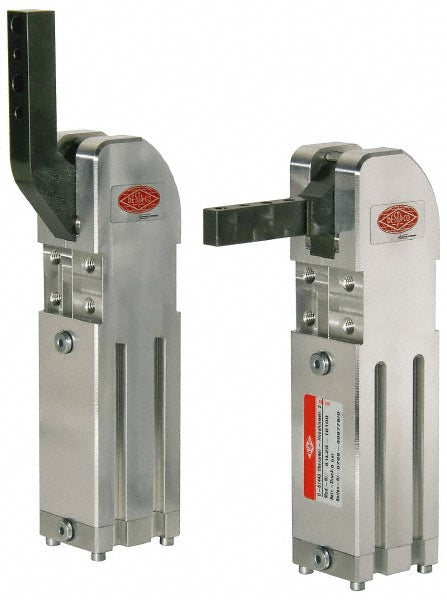

Toggle Clamp - De-Sta-Co 81L12-14100
MFR# 81L12-14100
$569.35
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 81L12-14100 is a toggle clamp.
Specifications
Air requirement psi20 to 130
Bar end typeClosed
Bar opening degrees90
Bar styleSolid
Cylinder bore size1.1000
D (mm)3.00
E (mm)3.30
F (mm)24.00
G (mm)9.00
Height under bar4.0900
Holding capacity inner lb177.00
H (mm)27.00
Length distance between mount holes0.5900
Maximum additional weight at clamp arm mounted in position x0.11
Maximum clamping torque at 72 psig lb39.00
Mounting hole size (mm)M4x6
Mounting orientationVertical
M (mm)28.00
Overall closed height0.9400
Overall open height5.0200
Port sizeM5
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes0.3500
