De-Sta-Co

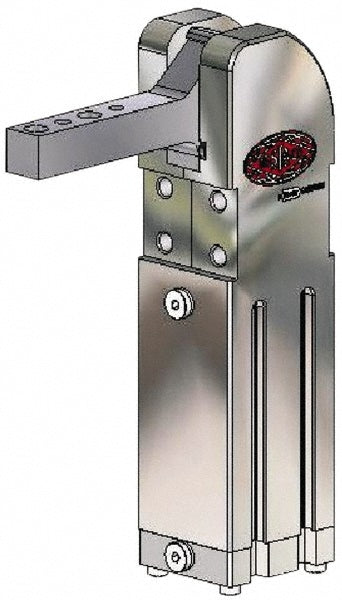

Toggle Clamp - De-Sta-Co 81L16-10100
MFR# 81L16-10100
$618.43
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 81L16-10100 is a toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleSolid
Cylinder bore size1.1800
D (mm)3.00
E (mm)4.30
F (mm)30.00
G (mm)15.00
Height under bar4.6900
Holding capacity inner lb531.00
H (mm)30.00
Length distance between mount holes0.7900
Maximum additional weight at clamp arm mounted in position x0.18
Maximum clamping torque at 72 psig lb53.00
Mounting hole size (mm)M5x5
Mounting orientationVertical
M (mm)30.00
Overall closed height1.1200
Overall open height5.8300
Port sizeM5
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes0.4700
