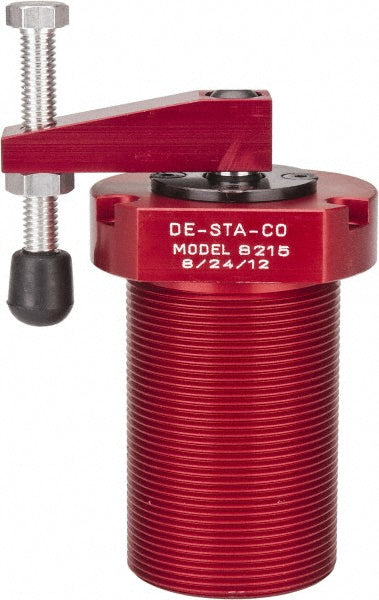

Swing Clamp - De-Sta-Co 8215

De-Sta-Co

Swing Clamp - De-Sta-Co 8215

MFR# 8215

$527.16List $560.04 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The De-Sta-Co 8215 is a swing clamp.

Specifications

Action typeSingle
Bin3.36
Body diameter3.0000
Body length3.3583
Body thread size2-1/4-12
Body width diameter3.0000
Clamping force lb89.92
Clamping force n400.00
Clamp arm compatibility821512 Standard Clamping Arm; 821513 Standard Clamping Arm; 821554 T-Style Clamping Arm; 821555 T-Style Clamping Arm; 821556 Blank Clamping Arm
C in0.8700
E in3.0000
FeaturesThreaded Body Mounted in a Tapped Hole
F in1.1600
G in0.2500
H field2.6600
IncludesClamping Arm; Spindle
K in2.3800
Maximum operating pressure psi130
Minimum operating pressure bar3.00
Mount typeThreaded Body
Operating volume cc32.94 (Clamp); 37.03 (Unclamp)
Operating volume cu in2.0100 (Clamp); 2.2600 (Unclamp)
Operation typeAir
Overall open length6.3600
Port size1/8 NPT
Rod diameter0.5000
Swing directionRight Hand
Total stroke distance0.8465
Vertical stroke distance0.3819
